Hot-Dip Galvanising Service

 BS 729:1971 Hot-Dip Galvanised Coatings on Iron & Steel Articles

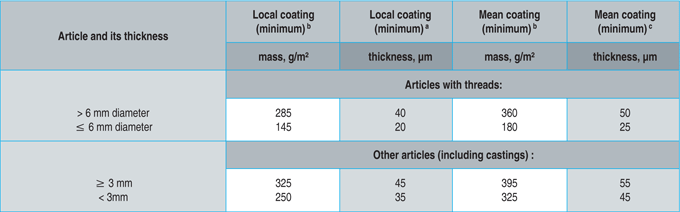

Print Table (1)

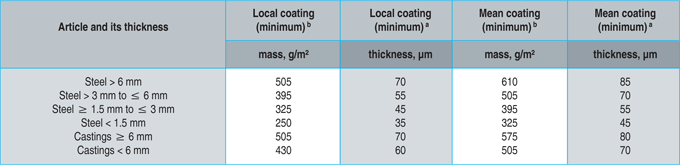

Print Table (2)

"Weight of Coating"

The weight of the zinc coating per square foot of actual surface, for 1/8 in. and 3/16 in. steels shall average not less than 2.0 oz. and no individual specimen shall show less than 1.8 oz. For ¼ in. and heavier material, the coating weights shall average not less than 2.3 oz. and no individual specimen shall show less than 2.0 oz. (See Note 1)

NOTE 1:1 oz of zinc per square foot of surface, based upon mathematical calculation, corresponds to a coating thickness of 0.0017 in.


Specifications provided in this website are reproduced from publications made available to us. The company shall not be responsible for any liability whatsoever resulting from the use of this website.
